VALVE BALL STRAIT 1/2FIP X 3/8
VALVE STRT 1/2FIP X 3/8
Lead-free
Water supply line valves fip inlet x compression straight no lead fip inlet x od=1/2 x 3/8 Chrome.
Chrome. Chrome.
ANGLE STOP 1/4TURN 3/8 STRAIT
DESIGN- Constructed of brass with a chrome-plated finish and designed as a 1/4-turn angle stop valve to control the flow of water in household fixtures.
?QUALITY- Features a leak-proof performance with Teflon seats. The working pressure is 125 PSI and the working temperature is 400 F to 1400 F. Lead-Free compliant for potable water drinking applications.
?EASY TO USE- With 1/4 turn, you are able to stop the flow of water leading to the plumbing fixture, such as ice makers, faucets, dishwashers, and toilets, allowing for maintenance and repair without turning off water to the entire home. It is a professional series valve with a brass ball valve mechanism for a longer lifespan and easy operation.
?FUNCTIONALITY- Use in faucets, toilets, dishwashers, and ice makers. ?MEASUREMENT- Equipped with 5/8 inch OD Comp x 3/8 inch OD Comp connections.

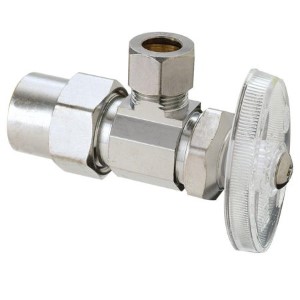

ANGLE VALVE 1/2"CPVCX3/8 MULTI
BrassCraft 1/2 in. Nominal CPVC Inlet x 3/8 in. OD Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
Machined, 1-piece body construction for strength, durability and long-lasting performance
1/2 in. Nom CPVC x 3/8 in. OD Comp
Compatible with CPVC tubing
For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115? F. For those applications, use our KT series ball stops.
Multi-turn operation means water flow control with only a few turns of the handle
Easy-to-remove handle protects against accidental operation during rough-ins
One-piece shut-off mechanism provides smooth on-off operation
Brass, Oil Rubbed Bronze, and Satin Nickel finish
For indoor use
Temperature rating: 40? to 160?F
Pressure rating: 125 psi maximum
